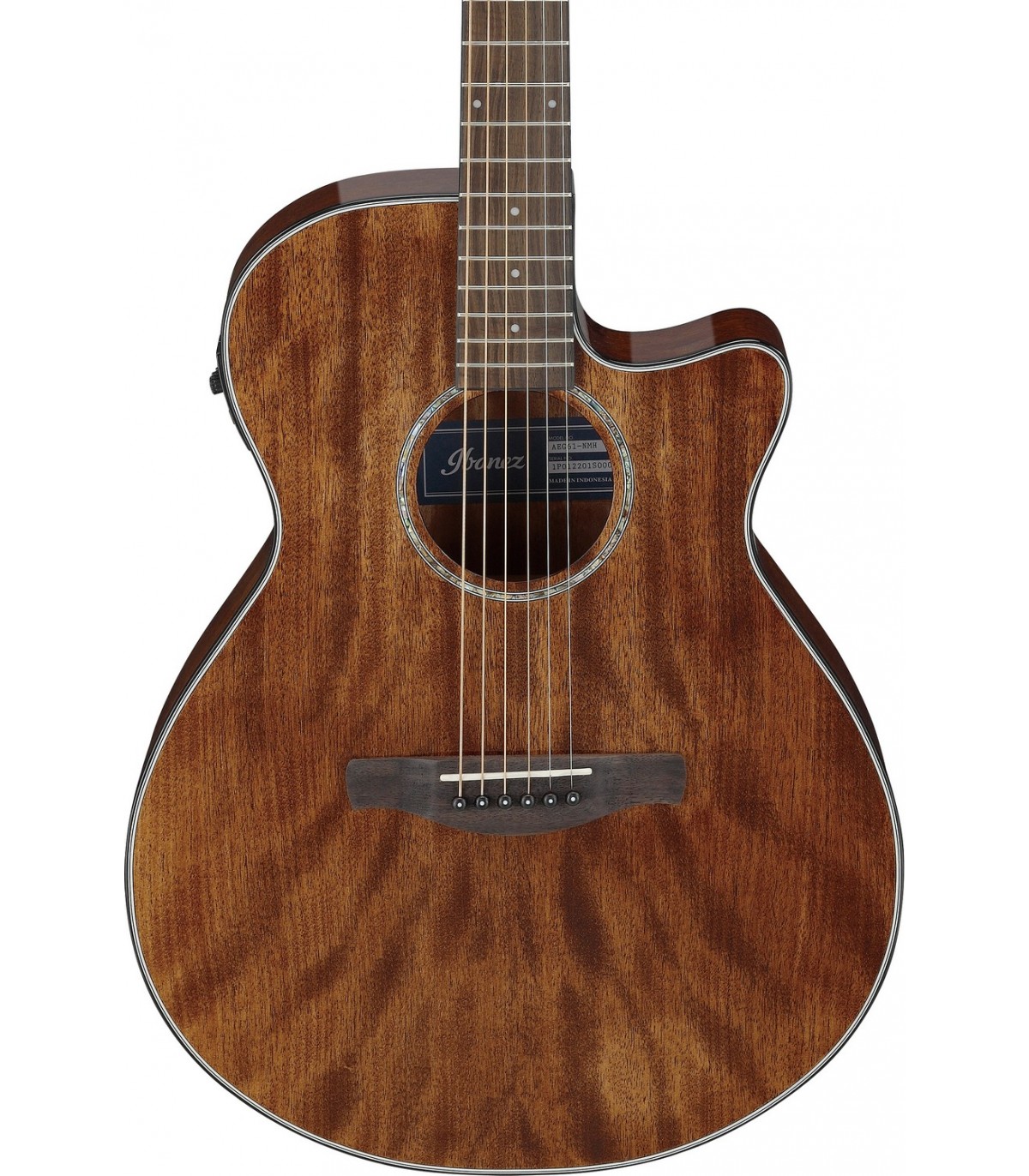

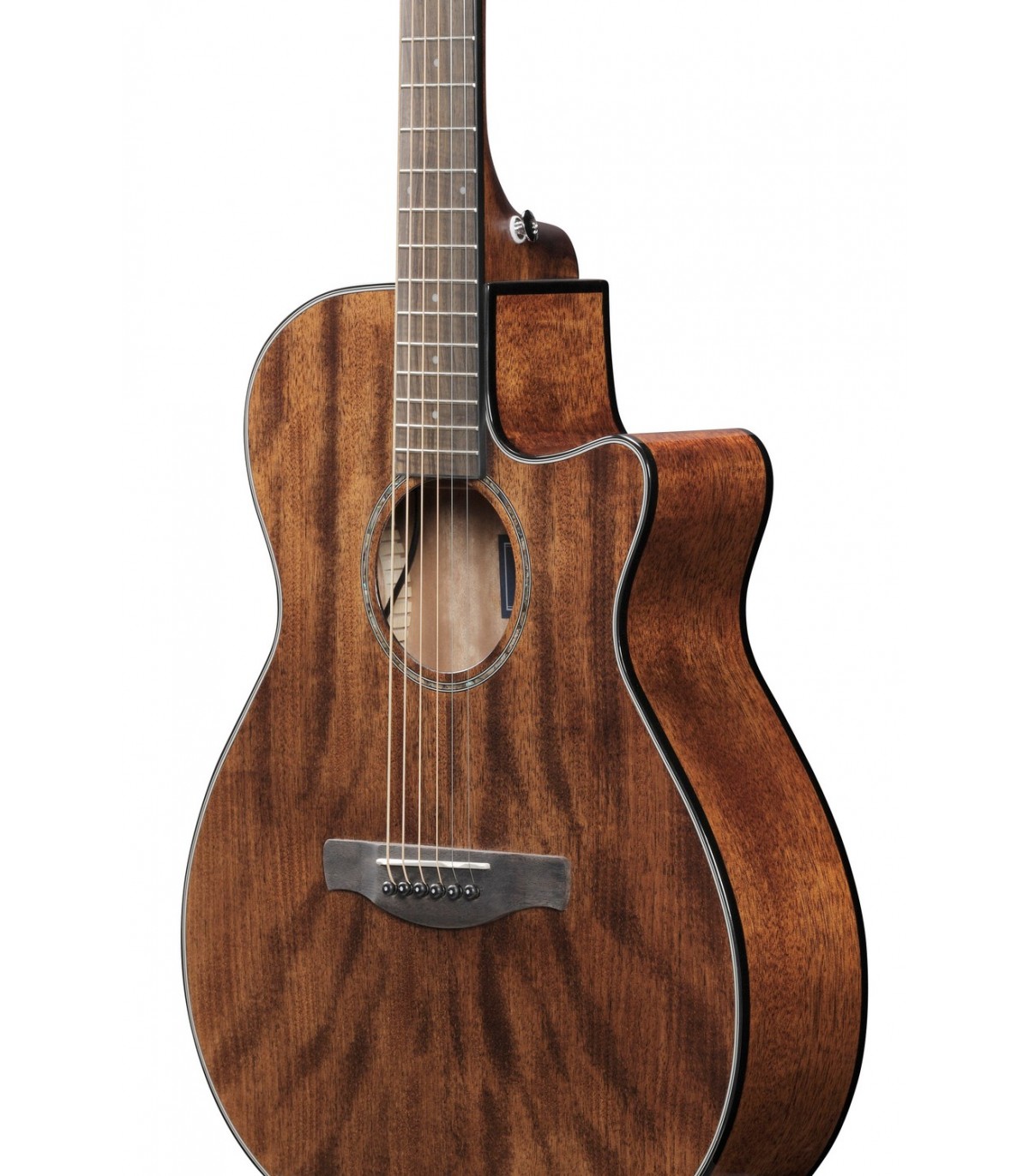

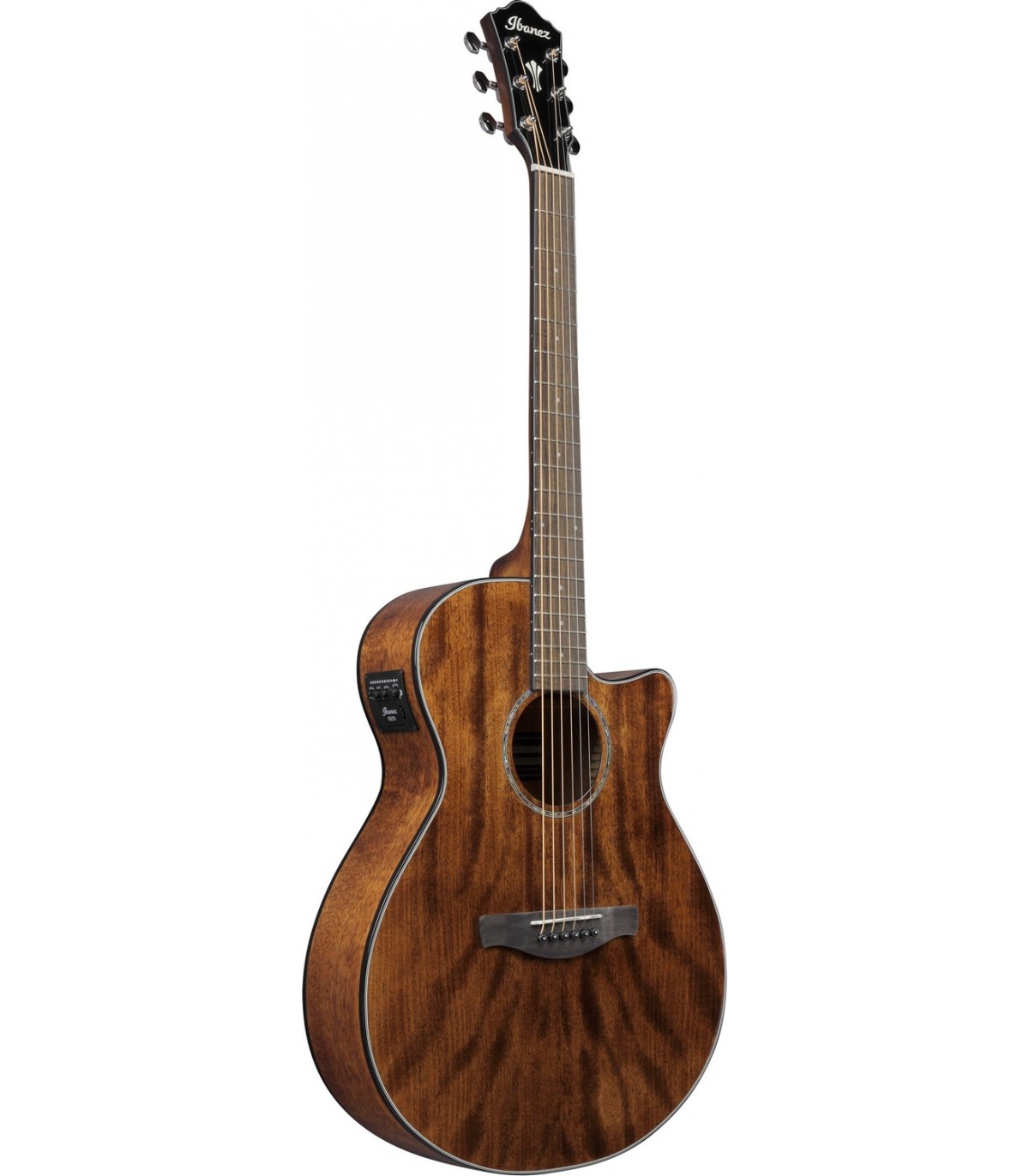

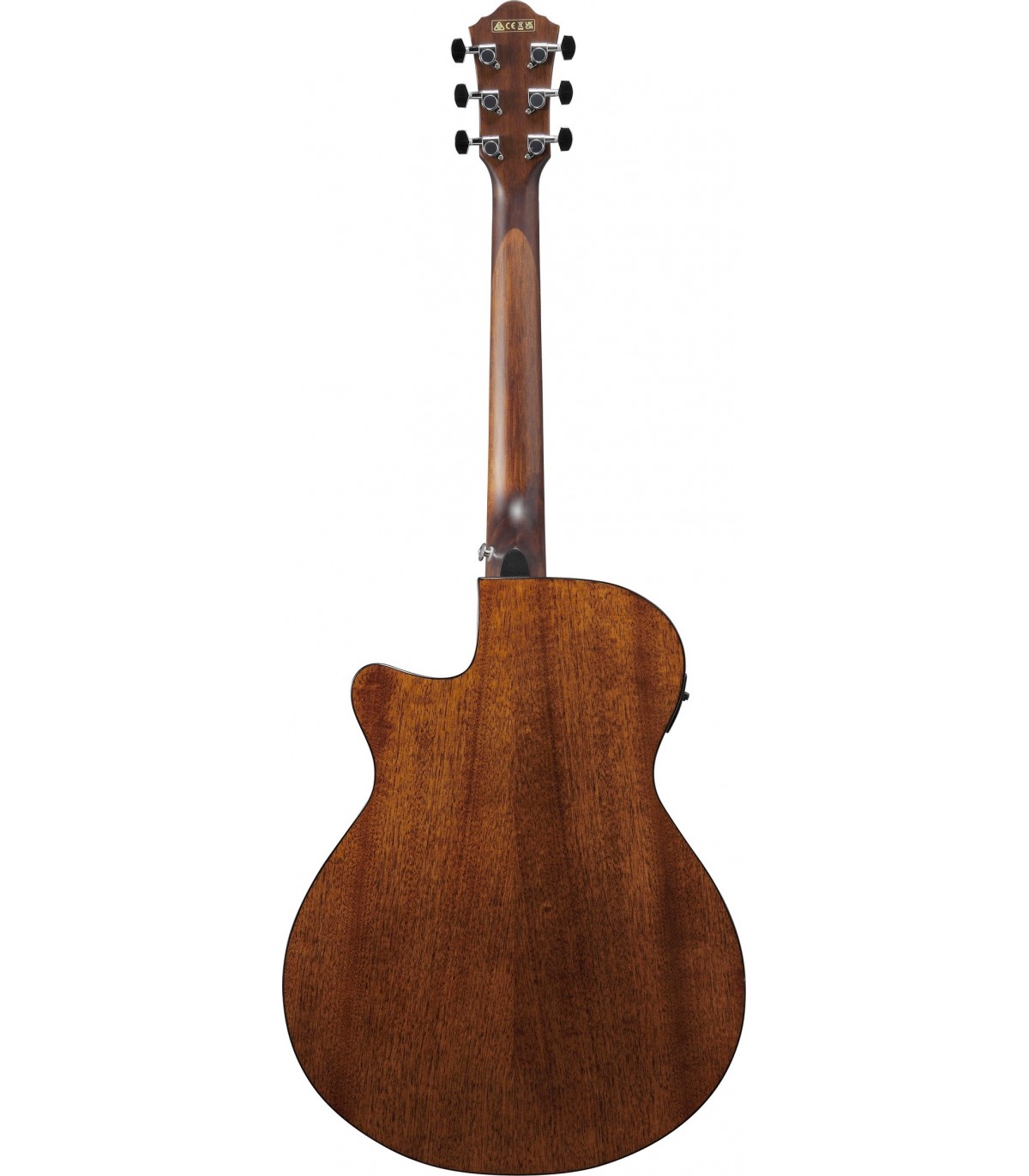

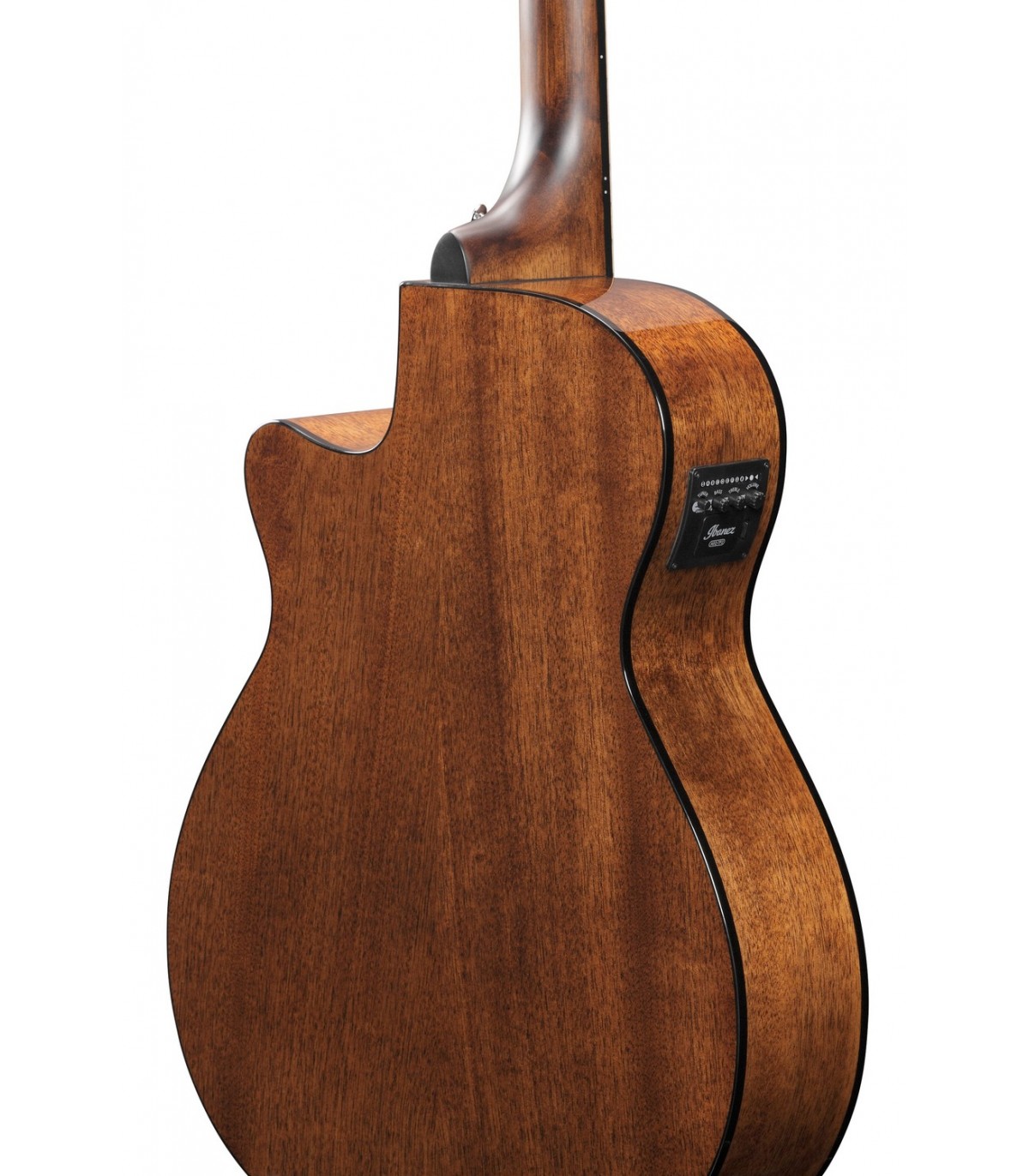

IBANEZ AEG61 NMH CHITARRA ACUSTICA ELETTRIFICATA

SPECS
body shape AEG body
top Okoume top

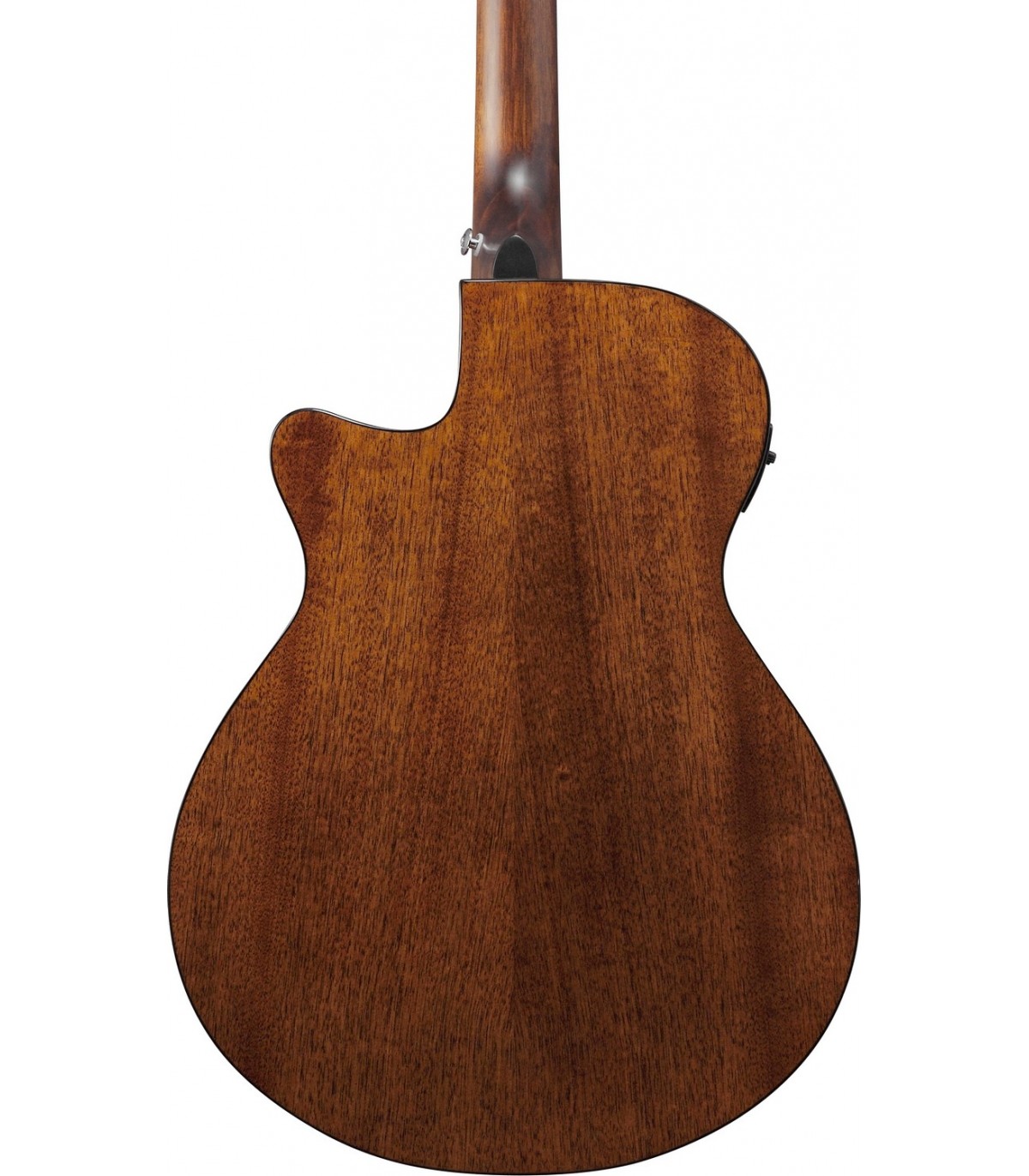

back & sides Okoume back & Okoume sides
neck Comfort GripNyatoh neck
fretboard Laurel fretboard
bridge Laurel bridge
inlay White dot inlay
soundhole rosette Abalone rosette

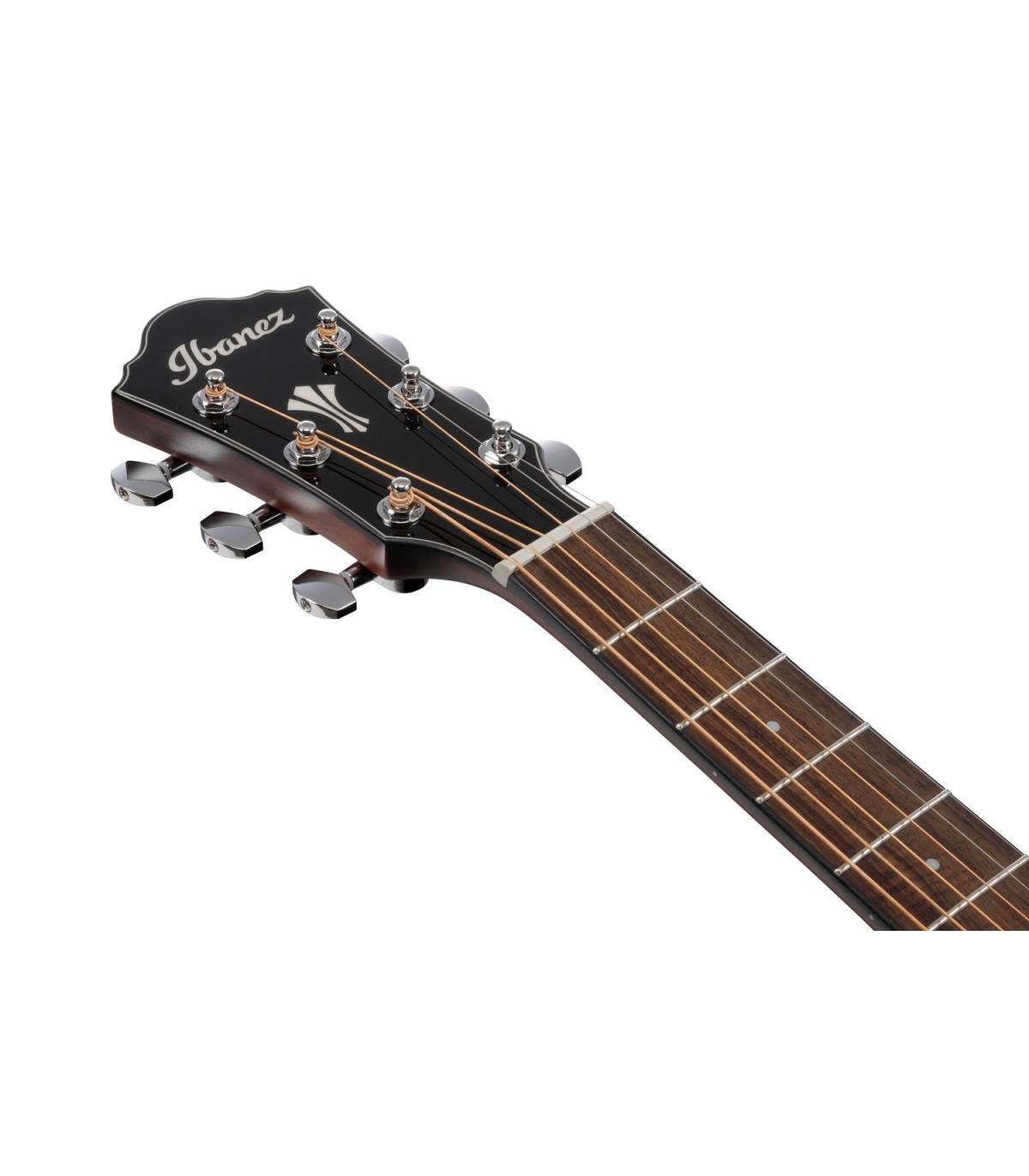

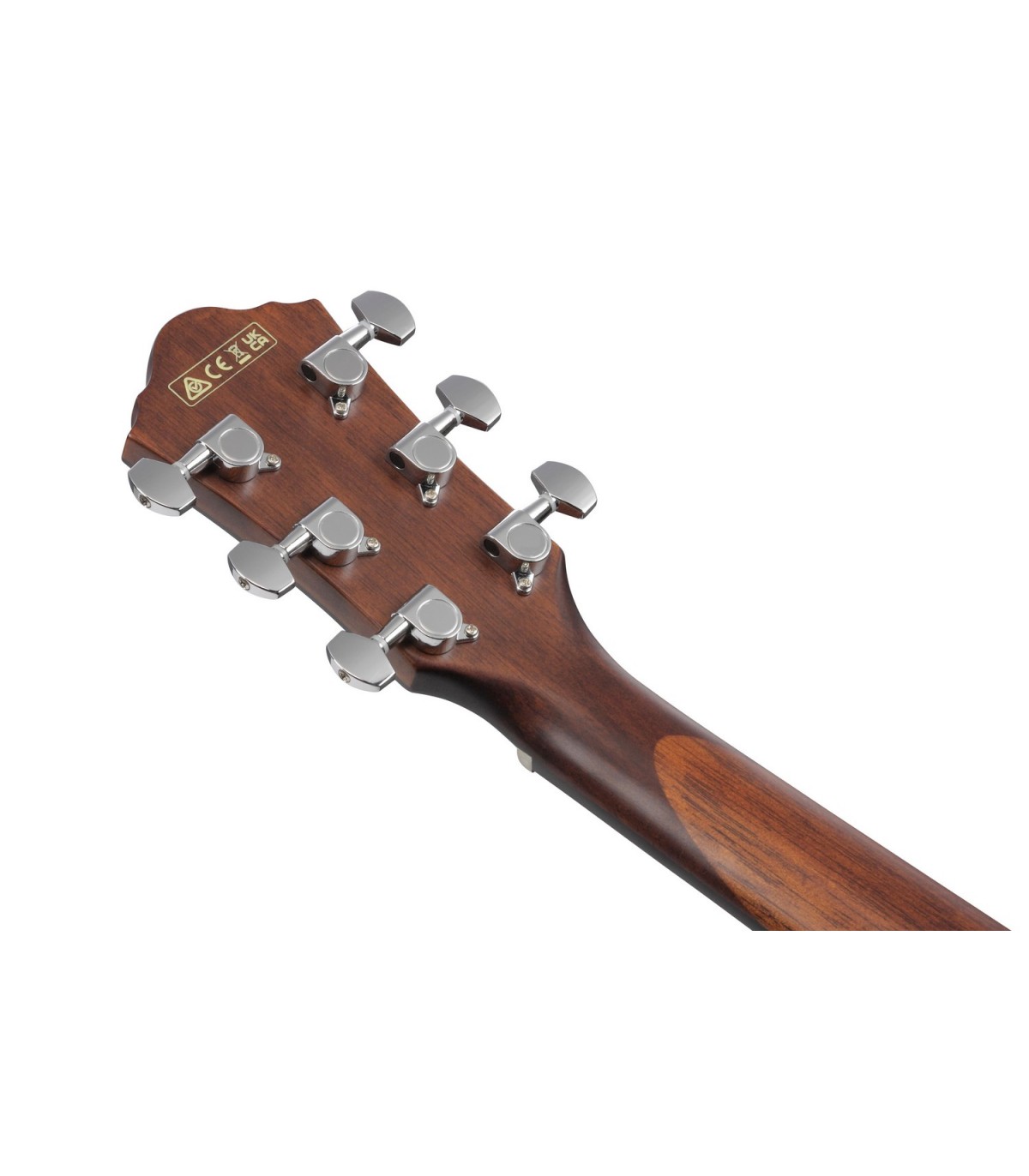

tuning machine Chrome Die-cast tuners (18:1 gear ratio)
number of frets 20
bridge pins Ibanez Advantage™
strings Ibanez IACSP6C
string gauge .012/.016/.024/.032/.042/.053
string space 11mm
factory tuning 1E,2B,3G,4D,5A,6E
pickup Ibanez T-bar Undersaddle

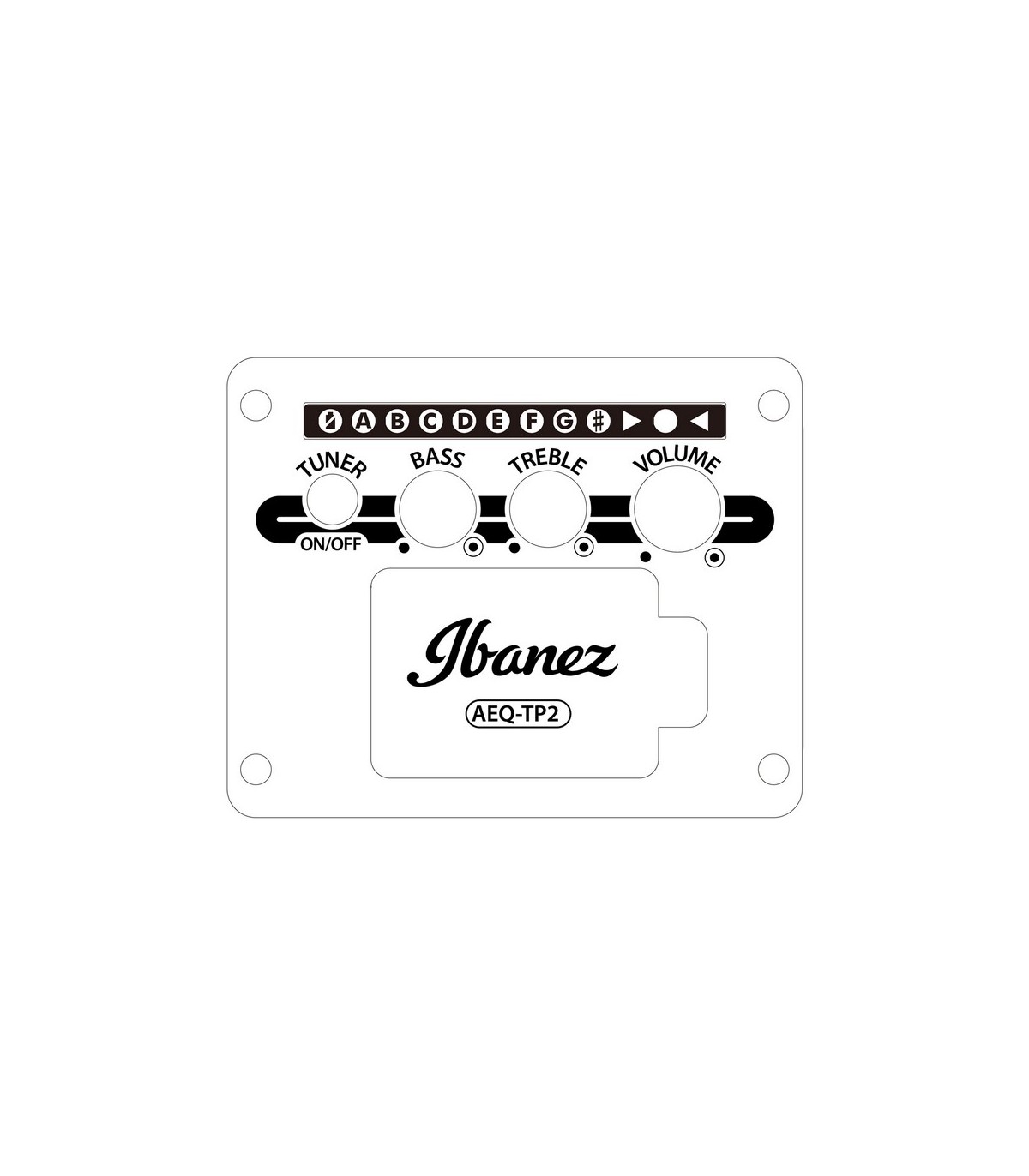

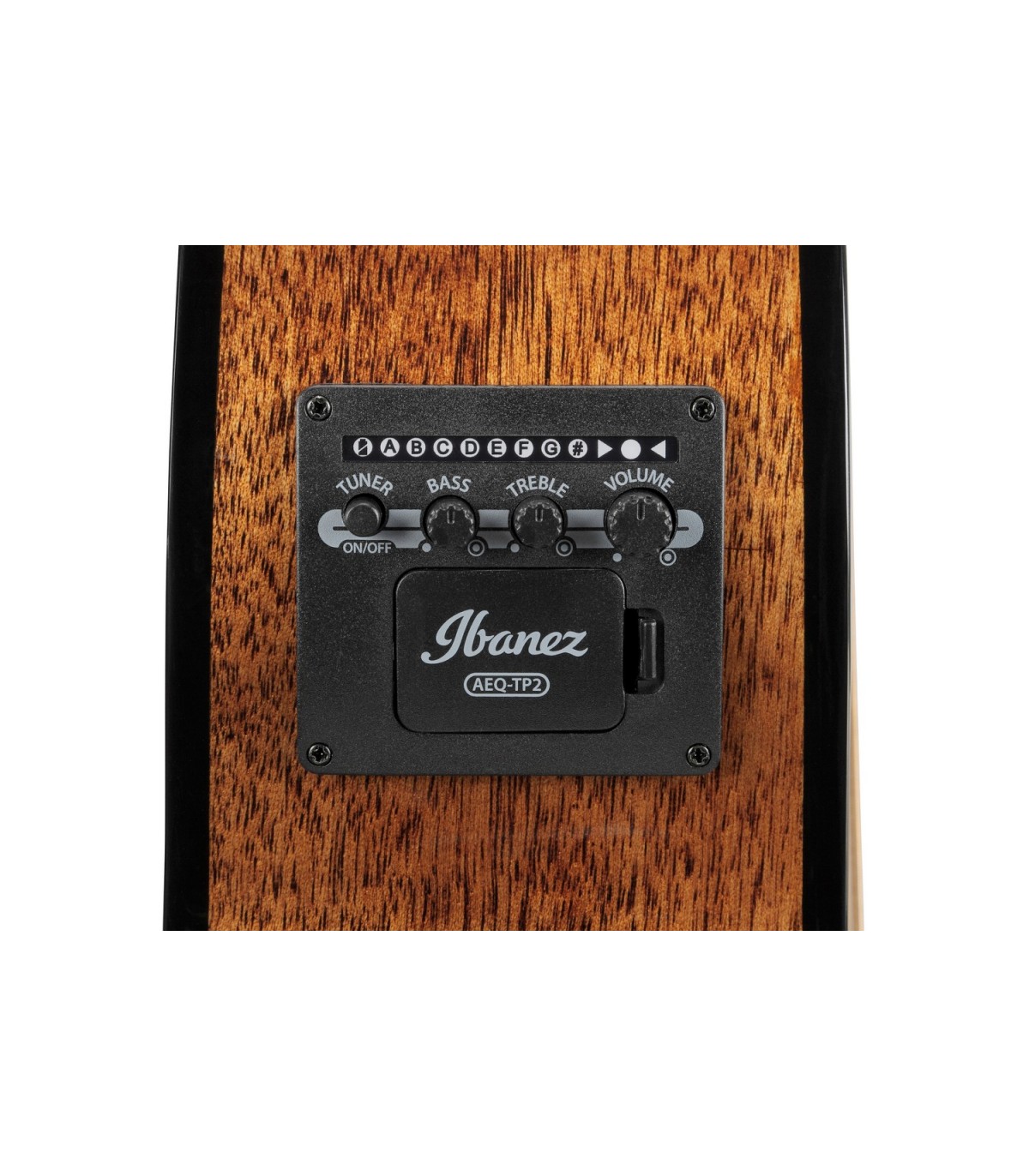

preamp Ibanez AEQ-TP2 preamp w/Onboard tuner

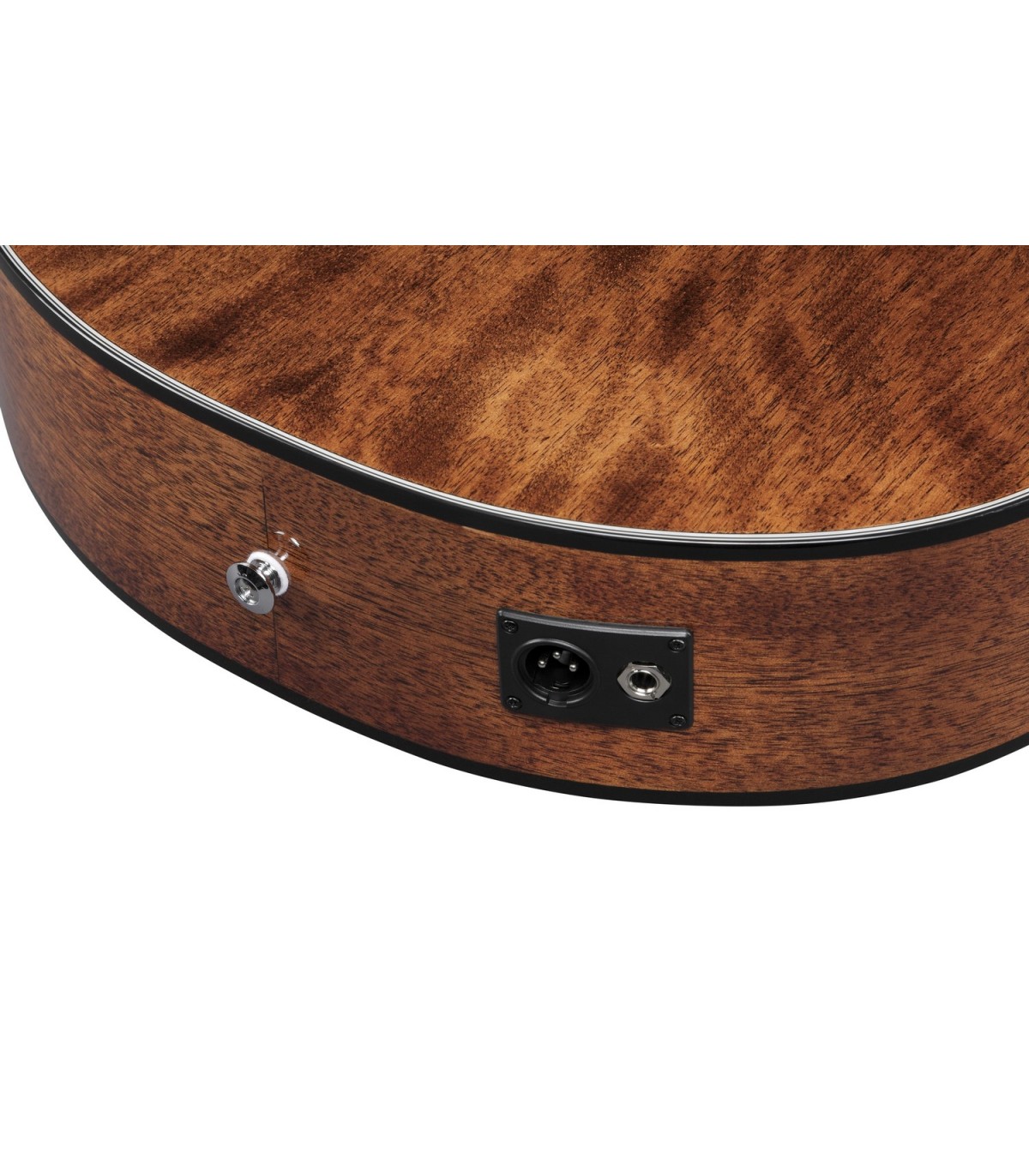

output jack Balanced XLR & 1/4" outputs
NECK DIMENSIONS
Scale : 634mm/25"
a : Width 43mm at NUT
b : Width 54.33mm at 14F
c : Thickness 20mm at 1F
d : Thickness 21mm at 7F
Radius : 400mmR
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
BODY DIMENSIONS
a : Length 19 3/8"
b : Width 15 "
c : Max Depth 3 3/4"
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
