Mixer professionale a 16 canali dotato di lettore USB integrato e ricevitore BT. Perfetto per l'uso durante esibizioni dal vivo, luoghi di culto o altri luoghi che richiedono ingressi multipli.
10 ingressi microfonici mono bilanciati (XLR)
8 ingressi di linea mono bilanciati (jack da 6.3 mm)
4 ingressi di linea stereo bilanciati (jack da 6.3 mm)
Alimentazione phantom +48V
Ingresso di linea stereo (RCA)
Filtro Low Cut da 75Hz sui canali 1-8
Processore multi-FX con 256 preset
Interruttore Solo per ogni canale (PFL)
Interruttore On/off per ogni canale
Controllo Hi, Mid e Low per ogni canale
FX, Pan, Trim regolabili per ogni canale
Aux send per ogni canale
Equalizzatore a 9 bande
Uscite principali stereo bilanciate (XLR + jack da 6.3 mm)
Sala di controllo separata, uscite cuffie e stereo rec
Lettore USB integrato con display digitale
Ricevitore BT per streaming audio
VU meter LED e Peak LED

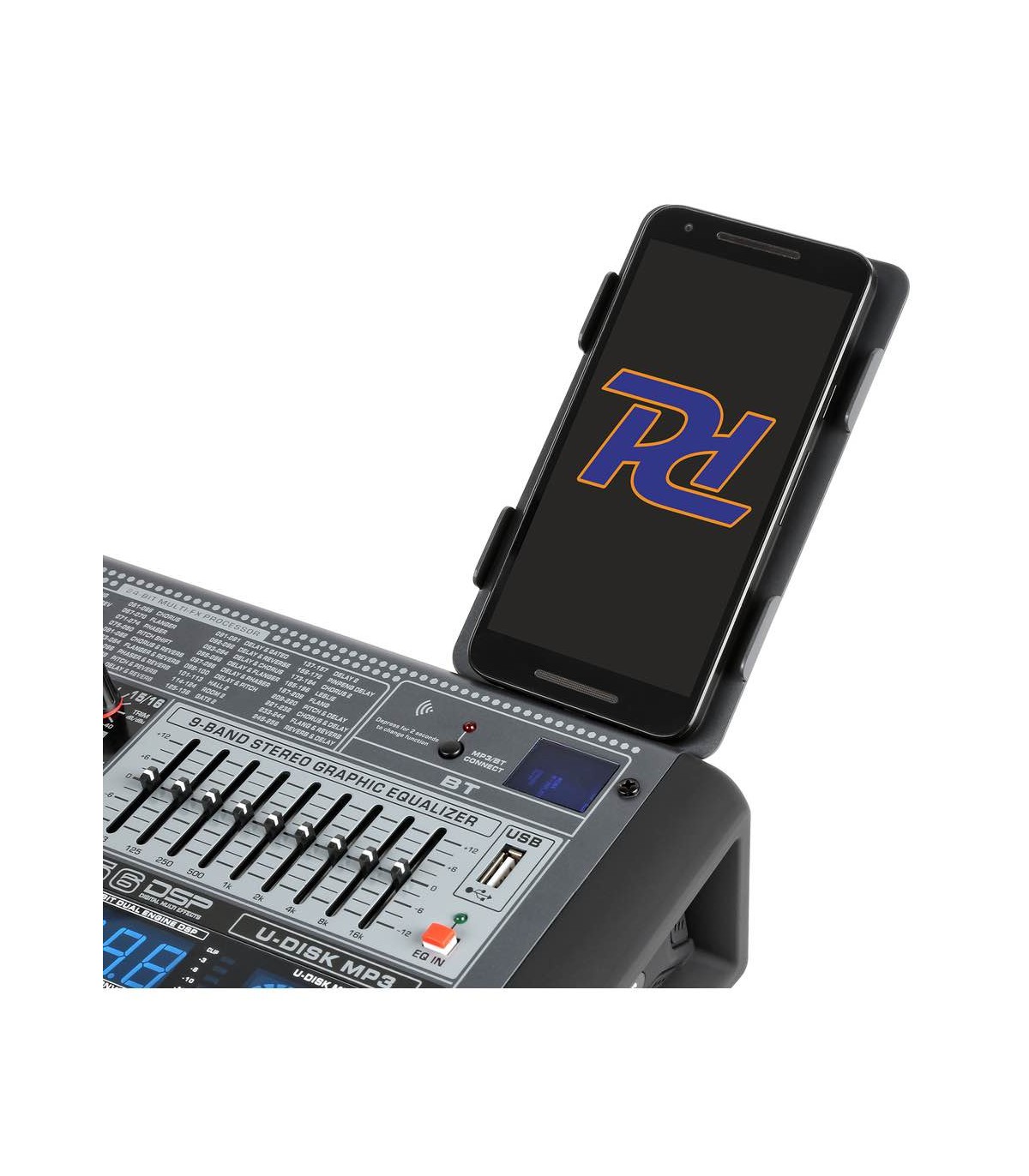

Portatelefono incluso Presets: 256
Type of effects: Ambience, Chapel, Chorus, Delay, Early reflex, Echo, Flanger, Gated reverse, Hall, Leslie, Phaser, Ping pong delay, Pitch, Plate, Reverb delay, Room, Spring, Stadium
DSP Resolution: 24-bit
Frequency Response: 10 - 45.000 Hz
THD: <0.01%
Input level: Mic. 1.5mV, 2kohm
Input level: Line 150mV, 100kohm
Signal-to-noise ratio: >112dB
Output level: Master 1V
Power Supply: 100-240VAC 50Hz
Dimensions (L x W x H): 335 x 520 x 95mm
Weight (kg): 5,40
172.626
Scheda tecnica
- Specifiche
- 2kohm
Input level: Line 150mV
40
100kohm
Signal-to-noise ratio: 112dB
Output level: Master 1V
Power Supply: 100-240VAC 50Hz
Dimensions (L x W x H): 335 x 520 x 95mm
Weight (kg): 5
Chapel
Chorus
Delay
Early reflex
Echo
Flanger
Gated reverse
Hall
Leslie
Phaser
Ping pong delay
Pitch
Plate
Presets: 256
Type of effects: Ambience
Reverb delay
Room
Spring
Stadium
DSP Resolution: 24-bit
Frequency Response: 10 - 45.000 Hz
THD: 0.01%
Input level: Mic. 1.5mV
- Caratteristiche
- 10 ingressi microfonici mono bilanciati (XLR)
8 ingressi di linea mono bilanciati (jack da 6.3 mm)
4 ingressi di linea stereo bilanciati (jack da 6.3 mm)
Alimentazione phantom +48V
Ingresso di linea stereo (RCA)
Filtro Low Cut da 75Hz sui canali 1-8
Proce
Mid e Low per ogni canale
FX
Pan
Trim regolabili per ogni canale
Aux send per ogni canale
Equalizzatore a 9 bande
Uscite principali stereo bilanciate (XLR + jack da 6.3 mm)
Sala di controllo separata
uscite cuffie e stereo rec
Lettore USB integrato con display digitale
Ricevitore BT per streaming audio
VU meter LED e Peak LED
Portatelefono incluso
