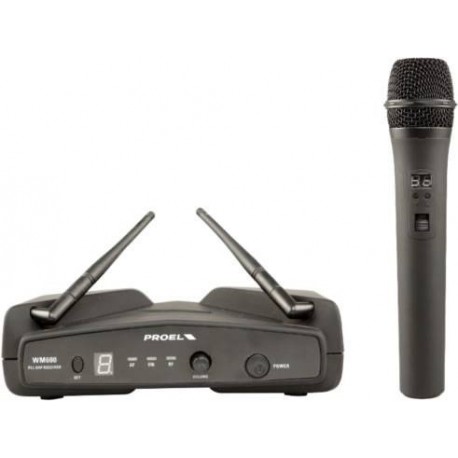

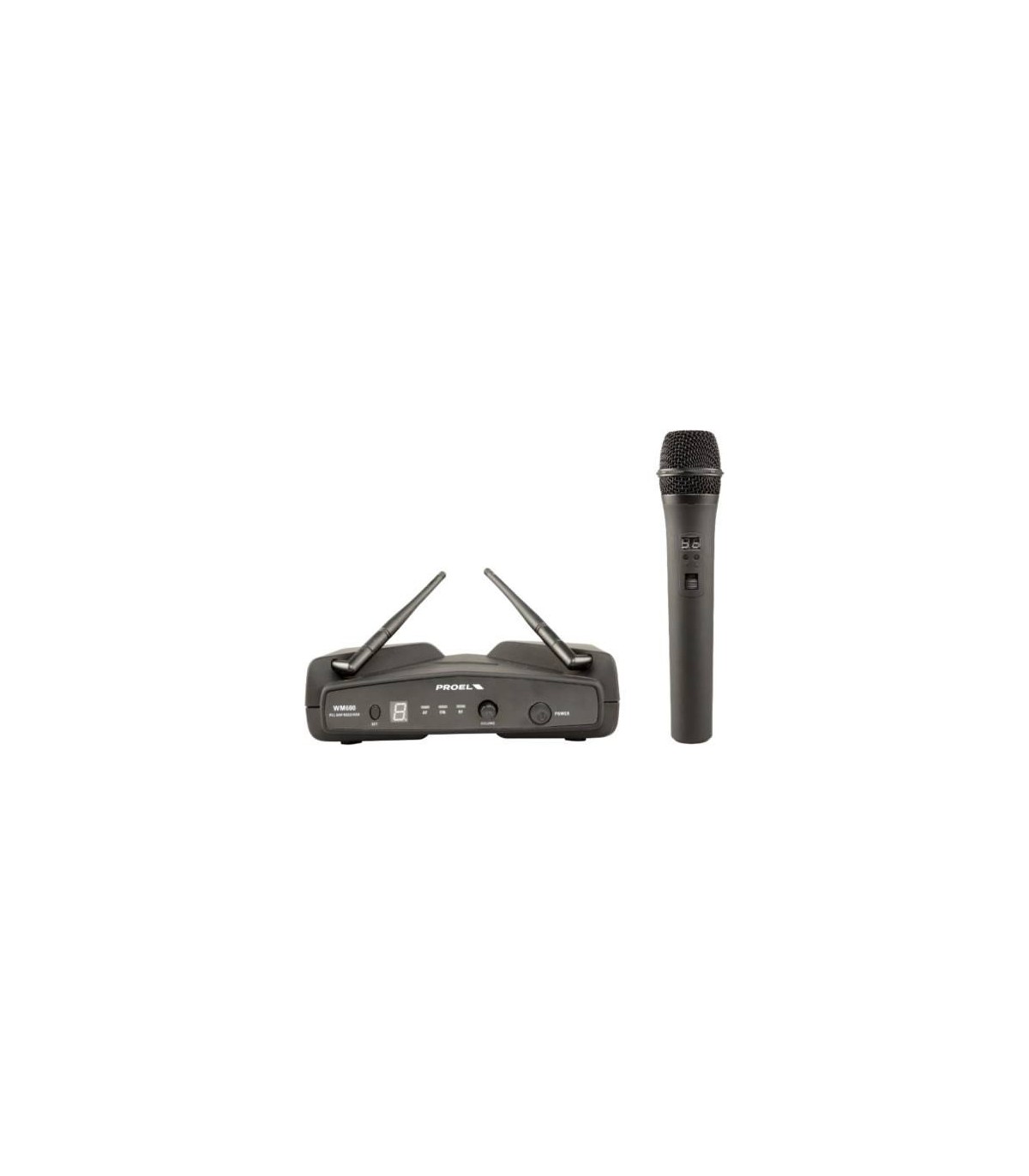

PROEL WM600M RADIOMICROFONO A MANO GELATO UHF

PLL UHF Wireless Microphone System

• Radiomicrofono a mano a frequenza selezionabile
• Banda 863 - 865 Mhz
• Trasmissione PLL
• Distanza operativa massima fino a  30 metri / 100 feet
• Risposta in frequenza  50 Hz - 15 KHz
• Rapporto segnale rumore -105 dB
• Capsula dinamica di tipo cardioide
• Ricevitore da tavolo a basso profilo con due antenne ripiegabili
• 4 canali selezionabili
• Fino a 3 sistemi utilizzabili in contemporanea
• Custodia in  ABS  inclusa nella confezione

  HANDHELD TRANSMITTER
  RF Frequency Band	863 ~ 865 Mhz PLL
  Channel	4 ch
  Frequency Stability	0,0002
  Modulation Method	FM ( F3E )
  RF Max deviation	± 40 Khz
  Audio Frequency Response	50 Hz - 15 Khz
  Transducer Type	Moving Coil
  Polar Pattern	Cardioid
  Spurious Emission	Under limits EN 300422
  RF Power	<10 dBm
  Power Supply	2 x 1,5 V alkaline  Battery
  Dimension  ( W x D x H ) mm	235 x 50 x 50
  RECEIVER
  RF Frequency Band	863 ~ 865 Mhz
  Channel	4 ch
  Frequency Stability	0,0002
  RF Image spurious Rej.	- 70 dB
  RF Interference reject	> 70 dB
  RF Sensitibily	- 105 dB
  Audio Frequency Response	50 - 15 Khz
  THD	< 1%
  Dynamic Range	>100 dB
  S/N Ratio	>105 dB
  Output Connector	xlr  Balanced
  	1/4 jack  unbalanced
  Power supply	dc 13-15 Vdc 200 mmA
  Dimension  ( W x D x H )	175 x 135 x 45
