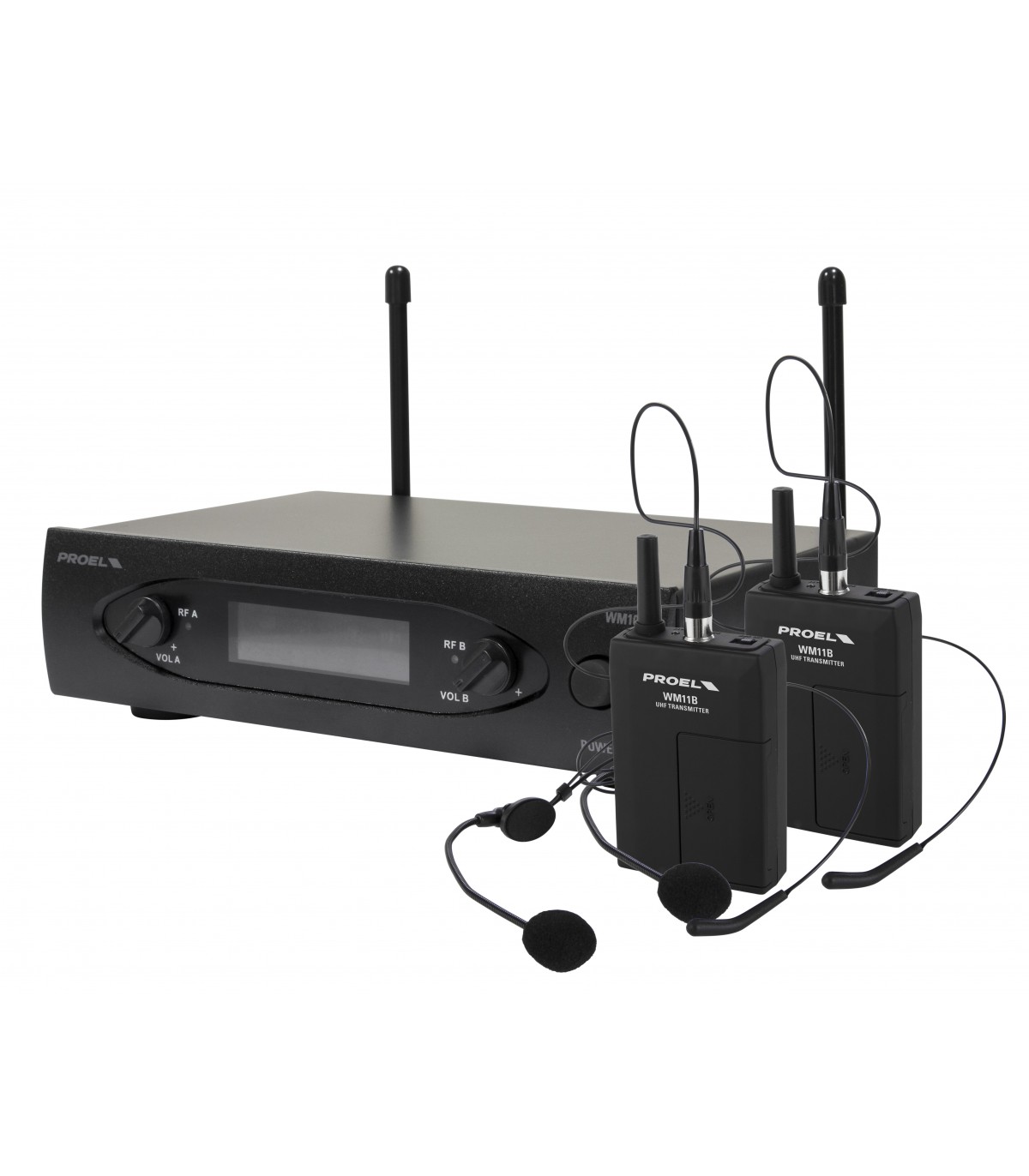

PROEL WM101DH COPPIA DI RADIOMICROFONI AD ARCHETTO HEADSET WIRELESS
Prodotti correlati
Radiomicrofono UHF bodypack due canali uscite indipendenti
- Radiomicrofono bodypack doppio canale a frequenza fissa
- Banda UHF 863 - 865 MHz
- Distanza operativa massima fino a 25metri / 85feet
- Risposta in frequenza 50 Hz - 15 KHz
- Rapporto segnale rumore -105 dB
- Headset a condensatore x 2
- Ricevitore da tavolo a basso profilo
- Ricevitore con schermo retro illuminato con indicazione delle frequenze
- Due uscite audio xlr separate con volumi indipendenti
| WM11B Bodypack Transmitter | |
| Carrier frequency range | 863 -865 MHz |
| Modulation Metod | FM(F3E) |
| Transmitting Power | < 10dBm Max Erp ( Effective Radiated Power ) |
| Transmission distance | Up to 25 mt ( open space ) |
| RF Frequeny Stability | 0,00% |
| Audio Frequency Response | 50 - 15000 Hz |
| RF Max deviation | 50 khz |
| Spurious Emission | Under limits EN300422 |
| RF Output Power | < 10dBm Max Erp ( Effective Radiated Power ) |
| Mic Capsule Headset | Back Electret Condenser mini xlr connector |
| Polar pattern | cardioid |
| Power Requirement | 2 x 1,5 Volt AA type |
| Battery Life | Up to 8 hours |
| Dimensions | H 260 x ؠ 45 mm |
| WM101D Receiver | |
| Receiver Type | Uhf Band |
| Frequency range | 863 -865 MHz |
| Modulation Metod | FM(F3E) |
| RF Frequeny Stability | 0,00% |
| RF Image / Spurious Rej | >70 dBm |
| RF interference Rej. | >70 dBm |
| Sensitivity | -105 dBm |
| Audio Frequency Response | 50 - 15000 Hz |
| THD | < 1% |
| Dynamic range | > 90 dB |
| S/N ratio | > 100 db |
| Power Requirement | 2 x 1,5 Volt AA type |
| Output connector | Unbalanced jack |
| Dimensions | H 45 X L 150 נ W 118 mm |
